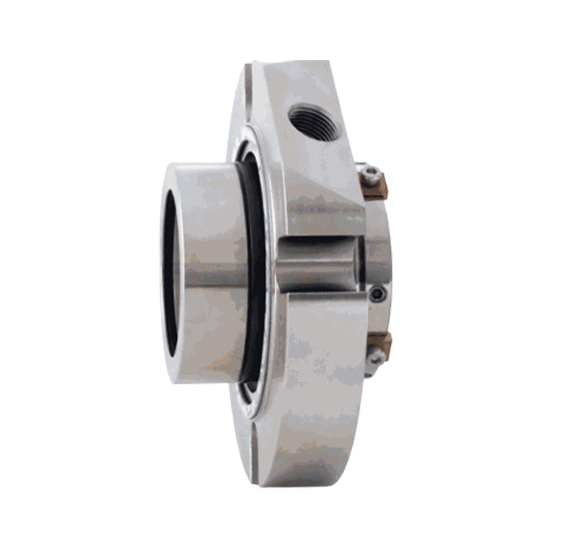

Cartex ANSI Single Seals
Features
- Single seal
- Available for standard (Cartex-ASPN) and big bore (Cartex-ABPN) seal chambers
- Cartridge
- Balanced
- Independent of direction of rotation
- Single seals with flush (-ASPN, -ABPN) and with quench combined with lip seal (-ASQN, -ABQN) or throttle ring (-ASTN, -ABTN)
Advantages
- Ideal for use in ANSI process pumps
- Universal applicable for packings conversions, retrofits or original equipment
- Seal for standardizations
- No dimensional modification of the seal chamber necessary, small radial installation height
- No damage of the shaft by dynamically loaded O-Ring
- Extended service life
- Installation faults are avoided, cost-effective
- No damage caused by dirt entered during assembly
- Straightforward and easy installation due to pre-assembled unit (reduced down-times)
Operating range
- Cartex-ASPN, - ABPN, -ASTN, -ABTN, -ASQN, -ABQN
- Shaft diameter:
d1 = 1.000" ... 3.750"
Other sizes on request
- Temperature: t= -40 oC ... 220 oC (-40 oF ... 428 oF)
(Check O-Ring resistance)
- Sliding face material combination BQ1
Pressure:p1 = 25 bar (363 PSI)
Sliding velocity: vg = 16 m/s (52 ft/s)
- Sliding face material combination Q1Q1 or U2Q1
Pressure:p1 = 12 bar (174 PSI)
Sliding velocity: vg = 10 m/s (33 ft/s)
- Axial movement:
±1.0 mm, d1 >75 mm ±1.5 mm
Recommended applications
- Process industry
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Power plant technology
- Pulp and paper industry
- Water and waste water technology
- Mining industry
- Food and beverage industry
- Universally applicable
- ANSI process pumps
Materials
- Seal face: Silicon carbide (Q1), Carbon graphite resin impregnated (B), Tungsten carbide (U2)
- Seat: Silicon carbide (Q1)
- Secondary seals: FKM (V), EPDM (E), FFKM (K), Perflourocarbon rubber/PTFE (U1)
- Springs: Hastelloy® C-4 (M)
- Metal parts: CrNiMo steel (G)
