Features

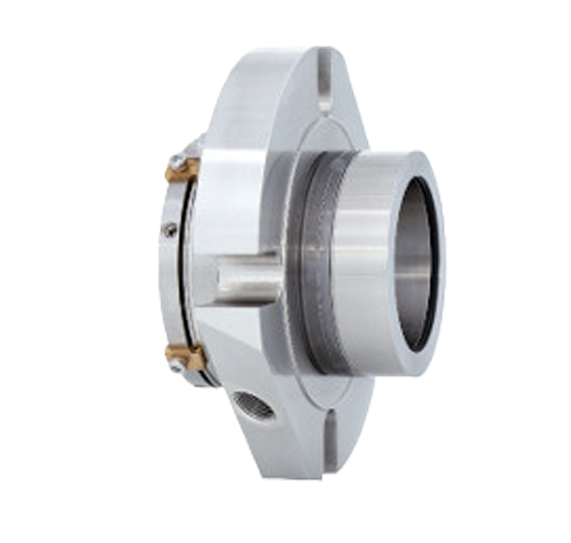

Dual seal
Cartridge
Balanced
Independent of direction of rotation
Double pressure balanced
Integrated pumping device
Variants available: for eccentric screw pumps (-Vario) and gas-lubricated version (-GSDN)

Advantages

Up to 80 % less energy consumption and minimized heat generation of seal due to friction-reducing DiamondFace layer
Up to 100 % extended operating period, prolongation of MTBF and MTBR intervals
Significantly improved dry-run capability for inadequately lubricated sealing surfaces, thus vastly improved process safety
Universally applicable, even with high solids content in the medium

Operating range

Shaft diameter: d1 = 25 ... 100 mm" (1.000" ... 4.000")
Other sizes on request
Temperature: t= -40 ^oC ... 220 ^oC (-40 ^oF ... 428 ^oF)
(Check O-Ring resistance)
Sliding face material combination BQ1
Pressure: p1 = 25 bar (363 PSI)
Sliding velocity: vg = 16 m/s (52 ft/s)
Sliding face material combination Q1Q1 or U2Q1
Pressure: p1 = 20 bar (290 PSI)
Sliding velocity: vg = 10 m/s (33 ft/s)
Barrier fluid circulation system:
p3max = 25 bar (363 PSI)
p (p3 - p1)ideal = 2 ... 3 bar (29 ... 44 PSI),
7 bar (102 PSI) for barrier media with poor lubricating properties)
Pump startup:
p (p3 - p1)max = 25 bar (363 PSI) allowed
Recommended supply medium: max. ISO VG 5
Axial movement:
±1.0 mm, d1 from 75 mm ±1.5 mm
