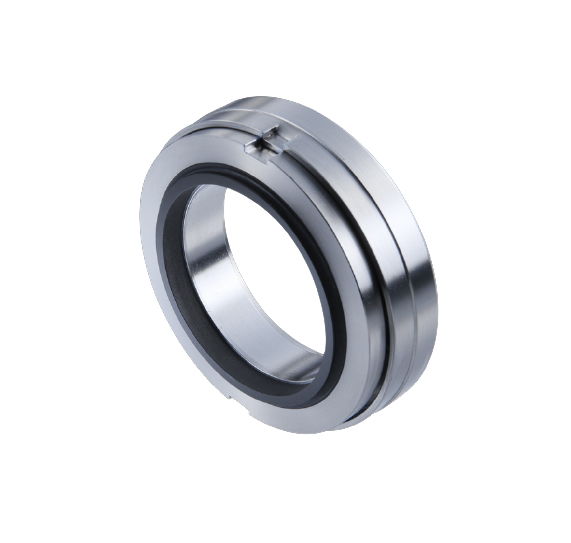

PS10B
Features
- Single seal
- Balanced
- Independent of direction of rotation
- Stationary multiple springs
Advantages
- Insensitive to solids in the medium
- Very short axial installation length (analog lip seals) combined with high pressure capability
- No damage of the shaft by dynamically loaded O-Ring
- Due to the stationary design insensitive to shaft misalignements
- Compact ready-to-install unit
Operating range
- Shaft diameter: d1 = 15 ... 100 mm (0.6" ... 3.9")
- Pressure:
p1 = 25 bar(363) PSI
- Temperature: t = -40 ...+180oC (-40oF ...356oF)
- Sliding velocity: vg = 35 m/s (115 ft/s)
Recommended applications
- Process industry
- Chemical industry
- Water and waste water technology
- Lube oils
- Roller seal
- Bearing seal
- All seal chambers with a very short axial installation length
Materials
- Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B)
