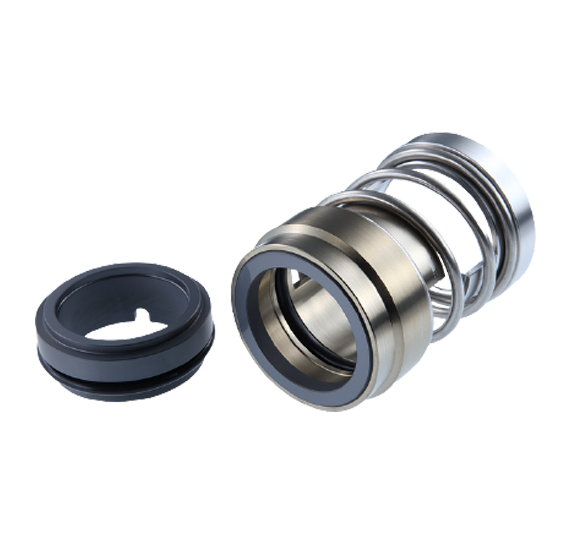

PS160-SPL
Features
- Single Seal
- Balanced
- Independent of direction of rotation
- Stationary multiple springs
Advantages
- Excellent torque transmission due to clutch drive between seal head and drive collar.
Operating range
- Pressure: p = 12 bar (174 PSI)
- Temperature: t = -20 oC ... +160 oC (-4 oF ... 320 oF)
- Sliding velocity: vg = 20 m/s (66 ft/s)
- Viscosity: ... 300mPa.s
- Solids content: ... 7%
Recommended applications
- Process industry
- Oil and Gas Industry
- High viscous media (tar, heavy oils)
- Process pumps
Standards and approvals
Materials
- Seal face and seat: Silicon carbide (Q1), Tungsten carbide (U7)
- Secondary seals: FKM (V)
- Metal parts: CrNiMo steel (G)
