PS5000

Features

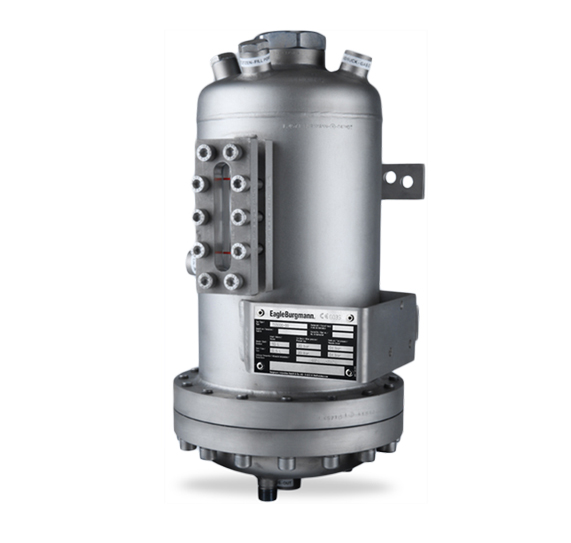

TS5000 thermosiphon system it is possible to supply buffer/barrier fluid to double and tandem mechanical seals for a broad range of applications. This range is designed as a flanged version with a sight-glass for level monitoring and with cooling coil. TS vessels are equipped as standard with all the necessary system connections and brackets.

Advantages

Vessel can be dismantled: for optimum and simple cleaning of the vessel interior
Suitable for a wide range of demanding operating conditions: TS5000 up to 30 bar / 200^oC
Sockets with recessed gasket: no contamination of the circuit by thread sealant
Vessel made of 1.4571 stainless steel / borosilicate sight-glasses: suitable for universal applications

Recommended applications

Chemical industry
Petrochemical industry
Oil and Gas industry
Refining technology
Oil and gas industry

Functional description

The TS system performs all the basic functions of a buffer/barrier system for the operation of double seals:

to pressurize the buffer chamber
leakage compensation
buffer/barrier fluid is circulated by thermosiphon effects
to cool the seal
to selectively absorb product leakage and prevent dry running (tandem arrangement)

Use compressed air or nitrogen for pressurization.
